Jual ZCC CT WCMX06T308R-53 YBG201 insert u drill

distributor insert WCMX06T308 surabaya

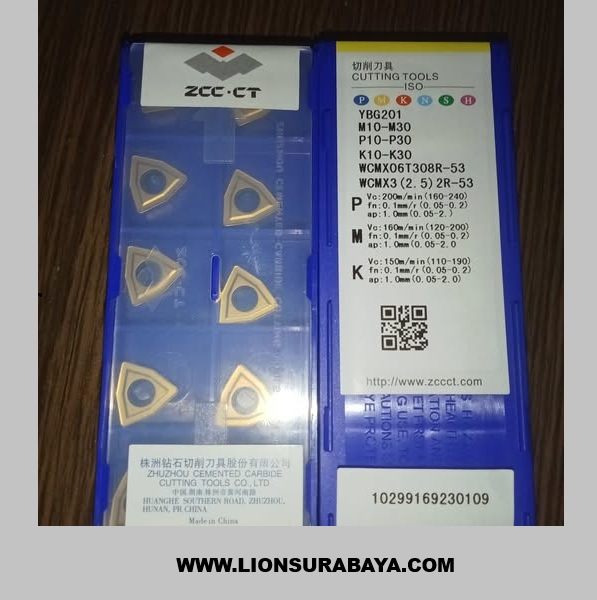

The ZCC CT WCMX06T308R-53 YBG201 is a high-performance indexable carbide insert specifically designed for U-drills (indexable drills). It features a PVD-coated grade optimized for versatility across various materials including steel, stainless steel, and cast iron.

According to data from lion machine solution and various merchant listings:

• Insert Type: WCMX (Trigon shape) for drilling.
• Size: 06T3 (Refers to the cutting edge length and thickness).
• Corner Radius: 0.8 mm (indicated by "08" in the code).
• Chip Breaker: -53 (Designed for efficient chip removal and medium feed applications).
• Grade (YBG201): Features a PVD nc-TiAlN coating combined with a tough ultra-fine particle matrix.
• Geometry: Includes an 80-degree included angle and a 7-degree major clearance angle.

Reviewers and technical guides highlight the following capabilities:

• Material Suitability: Ideal for machining aluminum alloys, soft steel, cast iron, and stainless steel.
• Machining Operations: Suitable for light to medium load milling, hole machining, and precision turning.
• Performance: The YBG201 grade is noted for its high wear resistance and balanced hardness, ensuring a wide range of application versatility.
• Chip Control: The -53 geometry ensures efficient chip removal, which is critical for deep hole drilling in CNC applications.
